Description
EndoTrap® HD is intended for in vitro quantitative removal of lipopolysaccharide (LPS) from biological samples in aqueous solutions such as proteins, antibodies, cell extracts and nucleic acids. EndoTrap® HD can be used in small scale processes for R&D and large scale processes, like manufacturing. It can be applied in early or late biomanufacturing process steps. EndoTrap® HD is based on hydrophilic, dimensionally stable affinity matrix with excellent pressure/flow characteristics.
Affinity chromatography for highly efficient endotoxin removal
- Removes endotoxins (lipopolysaccharides/LPS) from aqueous solutions of a wide range of samples such as proteins, antibodies, vaccines, bacteriophage preparations, nucleic acids, buffers and cell extracts with excellent sample recovery rate
- Has been experimentally demonstrated to be the superior method for removing endotoxin from phage preparations
- Helps avoid artefacts caused by endotoxin contamination in sensitive in-vitro and in-vivo assays
- Fulfills requirements for industrial applications and can be easily integrated in early or late stage purification processes
- Can be employed in both column or batch mode, by gravity flow or on fully automated liquid chromatography systems
Features
| Endotoxin binding capacity |
> 5,000,000 EU/ml
|
| Endotoxin removal rate |
> 99.99%
|
| Sample recovery rate |
> 95%
|
| pH sample range |
4-10
|
| Toxicity |
Non-toxic, no cytotoxic effects
|
| Reusability |
Re-use more than 10 times
|
| Suitable for high-salt conditions? |
Yes
|
| Buffers |
|
| Format | Pre-filled gravity flow column, pre-filled FPLC column, or bulk resin |
Choosing between EndoTrap Red and HD
Buffer Compatibility
Endotoxin removal with EndoTrap® HD works effectively in the pH range of 4-9 and NaCl concentrations of 50-600 mM. Buffers such as HEPES, TRIS, MOPS, MES, and PIPES are recommended. Citrate buffers and chelators of divalent cations (like EDTA) have to be avoided
Note: Customer specific buffers must contain 0.1 - 1 mM Ca2+ or Mg2+. When using PBS buffer always add 1 mM Ca2+ (e.g. CaCl2 ) and 1 mM Citrate pH 7 to the customer specific buffer. Otherwise phosphate and Ca2+ form an insoluble complex and will precipitate.
Leakage ELISA
EndoTrap® affinity chromatography is one principal method for cleaning biological solutions from endotoxin contaminations. The EndoTrap® ligand is a protein by nature, which is bound to the polymeric bead-matrix by stable covalent bonds. However, leakage of minute amounts of ligand is a matter of fact for all affinity materials and testing on these contaminants is often required for regulatory purposes. Depending on the intended use of the preparation and the step in the purification process (early or late), where EndoTrap® is used, a quantitative analysis of residual EndoTrap® ligand might be required. The EndoTrap® HD Leakage ELISA was developed to allow an accurate and reproducible determination of small amounts of EndoTrap® ligand in biological samples. This ELISA is suitable for detection of leached ligand from EndoTrap® HD resin.
Products Available in EndoTrap® HD Family
| Product Name | Cat. No. | Description |
| EndoTrap® HD 1/1 | LET0009 | 1 x 1 ml column, 25 ml 5x Equilibration Buffer, 25 ml 5x Regeneration Buffer, 25 ml 5x Storage Buffer |
| EndoTrap® HD 5/1 | LET0010 | 5 x 1 ml column, 125 ml 5x Equilibration Buffer, 125 ml 5x Regeneration Buffer, 125 ml 5x Storage Buffer |

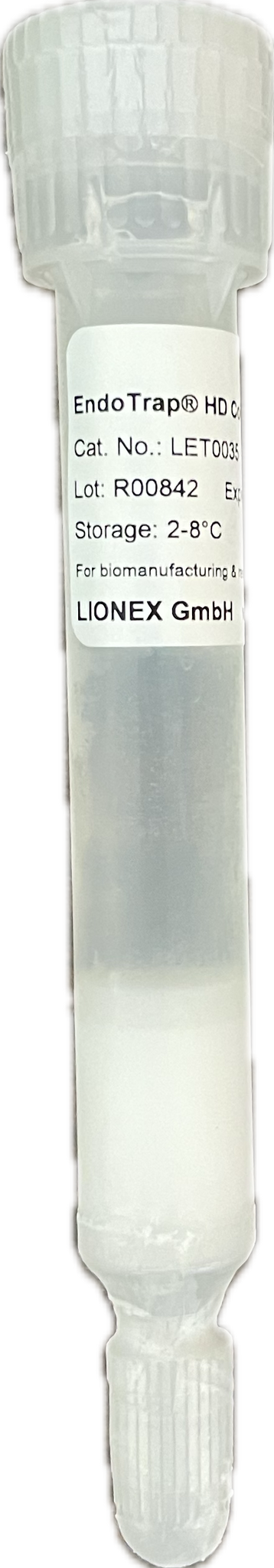

| EndoTrap® HD 1 ml column |
LET0035 | 1 ml resin in column |
| EndoTrap® HD 5 | LET0023 | 5 ml settled resin |
| EndoTrap® HD 10 | LET0011 | 10 ml settled resin |
| EndoTrap® HD 50 | LET0012 | 50 ml settled resin |
| EndoTrap® HD 250 | LET0013 | 250 ml settled resin |
| EndoTrap® HD FPLC Column (5 mL) | LET-HD-FPLC5ML | 5 ml resin in FPLC Column |
| EndoTrap® HD Buffer Kit | LET0031 | 125 ml 5x Equilibration Buffer, 125 ml 5x Regeneration Buffer, 125 ml 5x Storage Buffer |
| EndoTrap® HD Leakage ELISA | LET0014 | 96 determinations (12 x 8 well strip & frame) |
| Empty Columns Large |
LET0019 | for 2-10 ml resin (pack of 5 columns) |
| Empty Columns Small | LET0020 | for 0.2-2 ml resin (pack of 5 columns) |
| Disposable Polypropylene Funnel |
LET0018 | pack of 5 funnels |
| EndoGrade® Endotoxin-Free Glass Test Tubes (112 ct.) | LET0021 | 112 endotoxin-free borosilicate glass test tubes with aluminum screw cap, capacity 5 ml, height 50 mm |
Resources
- EndoTrap HD Datasheet
- EndoTrap HD FPLC Datasheet
- EndoTrap HD Leakage ELISA Datasheet
- EndoTrap HD Material Safety Data Sheet (MSDS)
- FAQ about EndoTrap
- EndoTrap User Applications
- EndoTrap HD for Bacteriophage Preparations
